South africa ibr roof sheeting roll forming machine
Delivery time:25-35 days
Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
South africa single layer ibr roof sheeting roll forming machine
Single layer roof machine, this ibr roof sheeting roll forming machine is hot sell in South Africa, we can do 18 rows of roller or 13 rows of roller, our machine is customized, any machine requirement, please contact Haixing company, we will supply you the professional solution.
Main parameters of South africa single layer ibr roof sheeting roll forming machine
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |

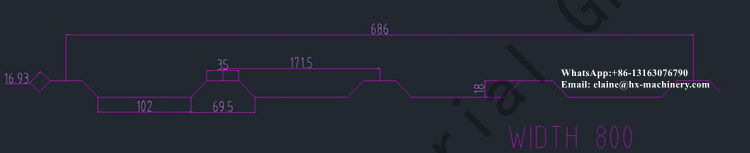

| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 70mm for South africa single layer ibr roof sheeting roll forming machine |
| Maine structure | Middle plate 16mm |
| Transmission | Chain drive |
| Control systerm | PLC control, automatic produce |

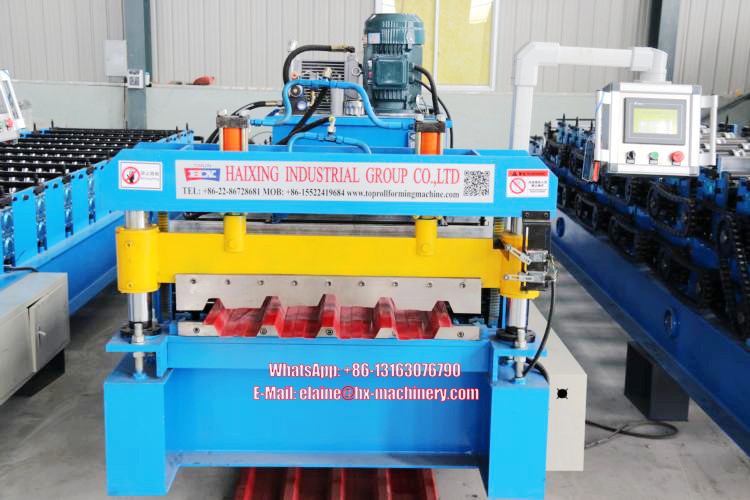

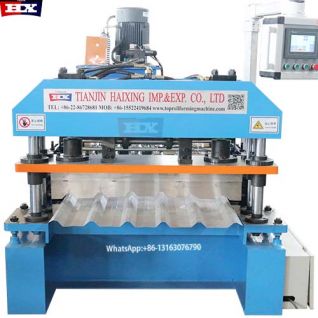

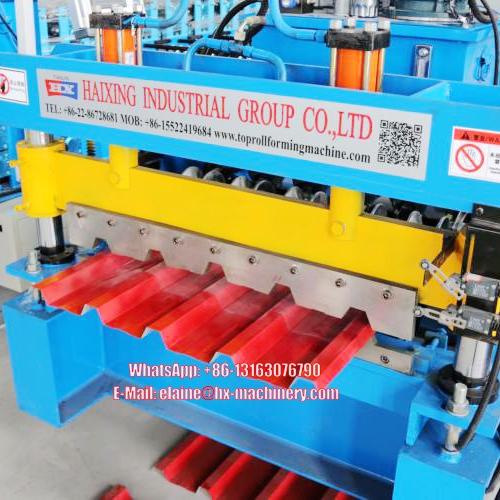

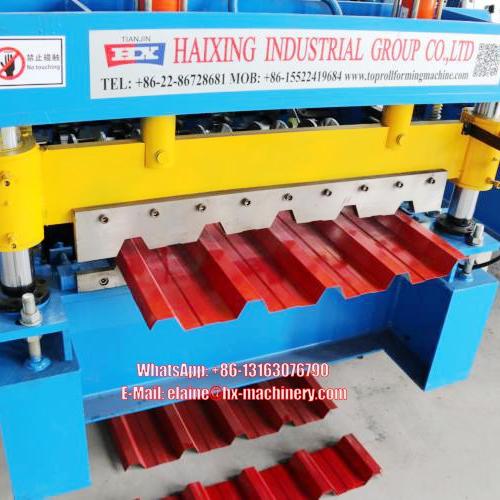

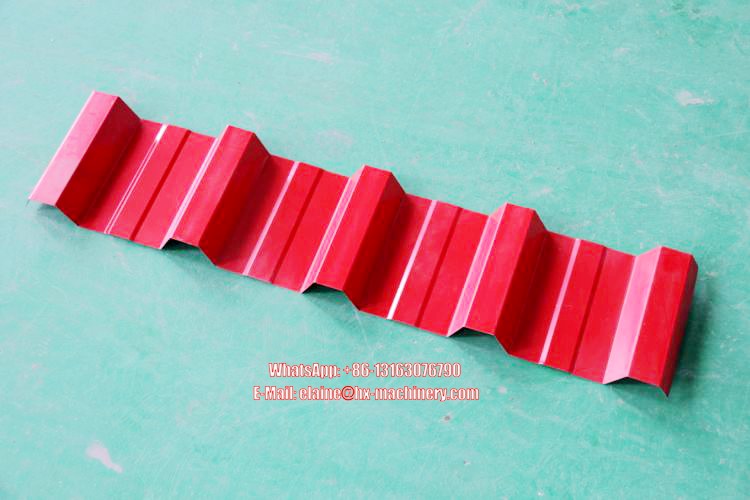

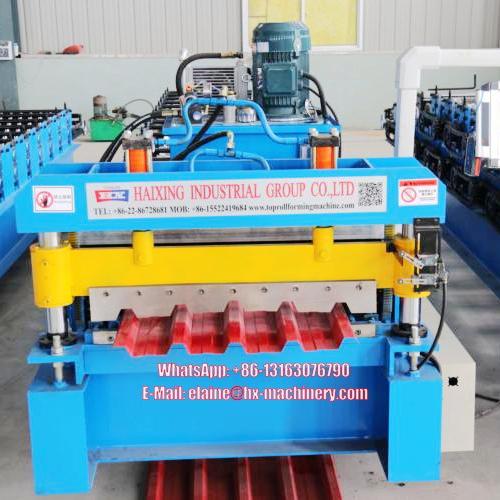

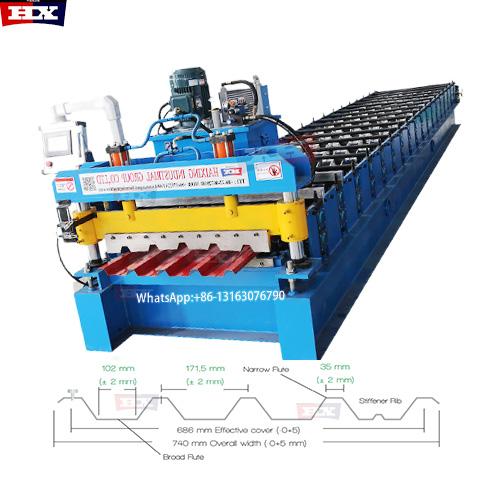

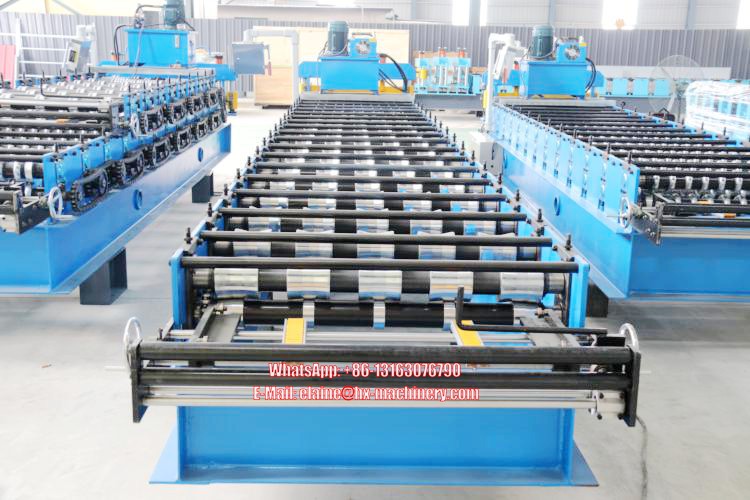

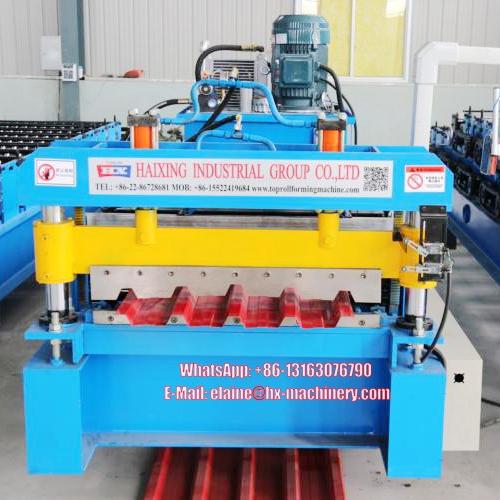

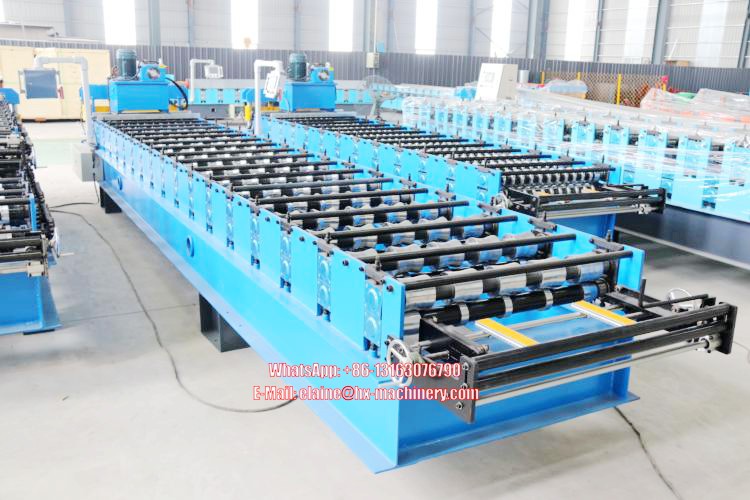

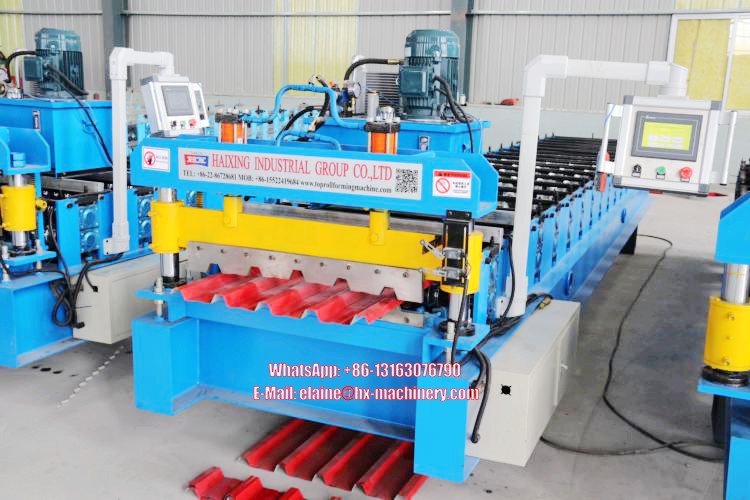

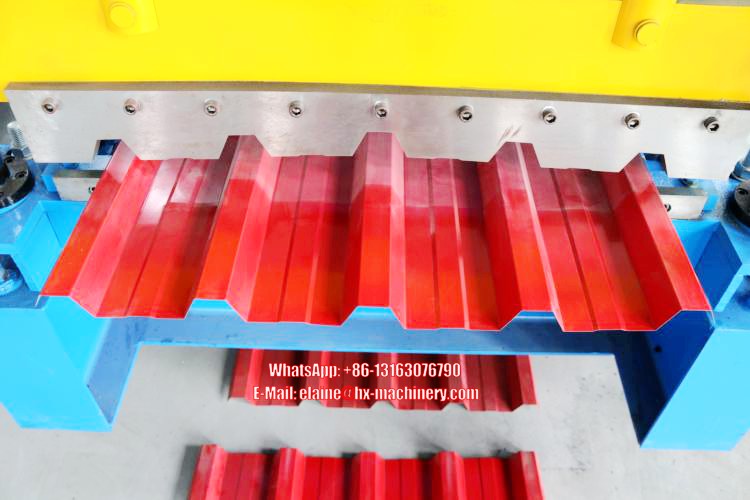

South africa single layer ibr roof sheeting roll forming machine photo for reference
Composition of ibr roof sheeting roll forming machine
It include decoiler machine 7Ton, roll forming machine, PLC control systerm, Touch screen, Hydraulic cut, electric control system, output table 3meters
Package of south africa ibr roll forming machine
For the double layer ibr making machine price in south africa, they will be provided with nude packing as the standard option and pack them with waterproof plastic to safeguard the equipment during transportation and storage.
After sales services
- Warranty Coverage: We offer a two-year warranty period during which we will supply technical support for the entire lifespan of the equipment. This ensures that you have access to our expertise whenever you encounter any issues or require assistance with the operation and maintenance of the machinery.
- Delivery Timeline: The equipment will be dispatched within 25 to 35 working days subsequent to the receipt of your deposit payment. Our efficient production and logistics processes are designed to ensure a timely delivery, allowing you to plan your operations with confidence.
