Ibr roof sheet roll forming machine manufacturers
Delivery time:25-35 days

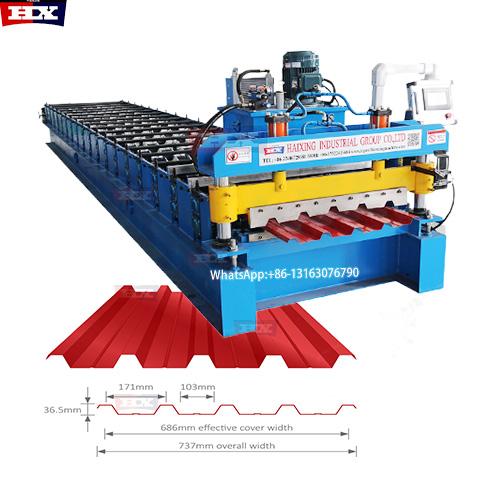

Model: IBR686 and Corrugated 762
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.

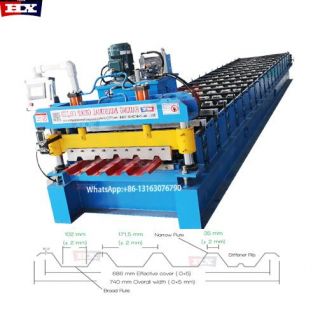

Ibr trapezoidal roof sheet roll forming machine manufacturers
IBR trapezoidal roofing machine is a popular choice in Africa. The machine uses a high-quality chrome-plated roller and shapes the roofing sheet very well and beautifully. Ibr trapezoidal roof sheet roll forming machine manufacturers in China, we are more than 20 years factory and we has export to over 100 countries.
Main parameters of Ibr trapezoidal roof sheet roll forming machine
| Raw material | Color steel coil, aluminum steel coil, galvanized steel coil |
| Thickness | standard 0.3-0.8 mm |
| Raw material feeding width | 925mm for Ibr trapezoidal roof sheet roll forming machine |
| Machine size | around 9*1.5 *1.8m |
| Machine weight | around 5ton |

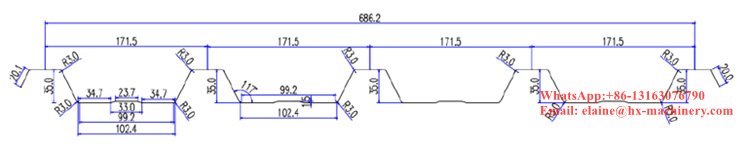

| Rollers | around 18 rollers, it depends on the profile drawing |
| Roller material | number 45 steel |
| Maine motor | 5.5kw |
| Pump motot | 4kw |
| Shaft diameter | 70mm |
| Maine structure | Middle plate 16mm |
| Transmission | Chain drive |
| Control systerm | PLC control, automatic produce |

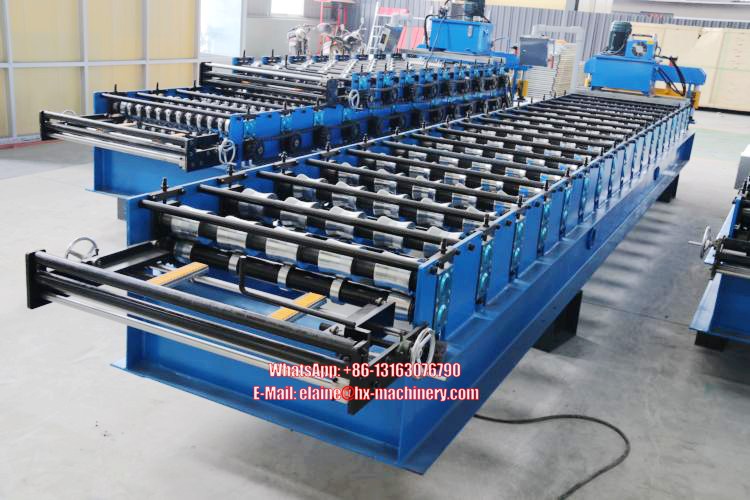

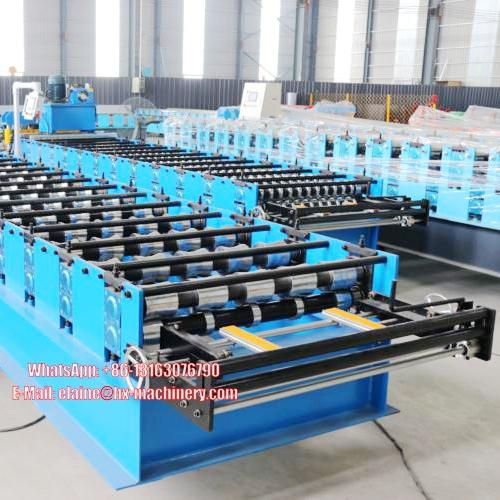

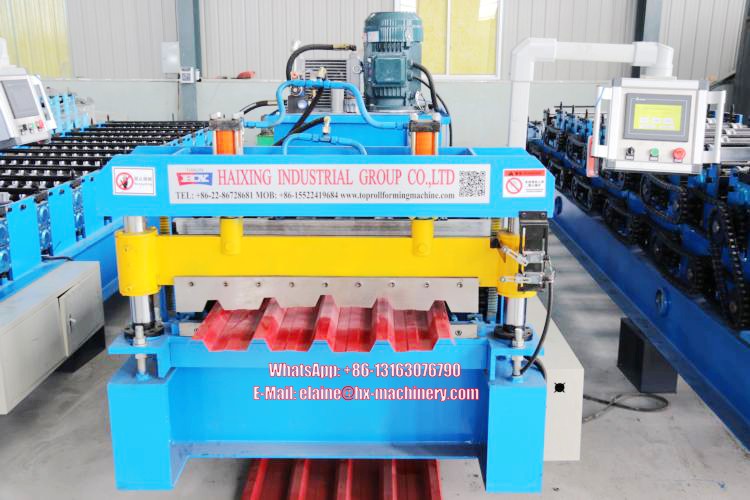

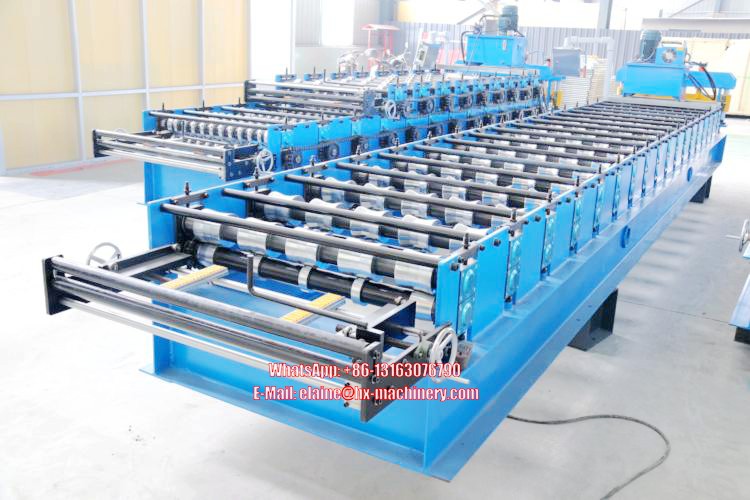

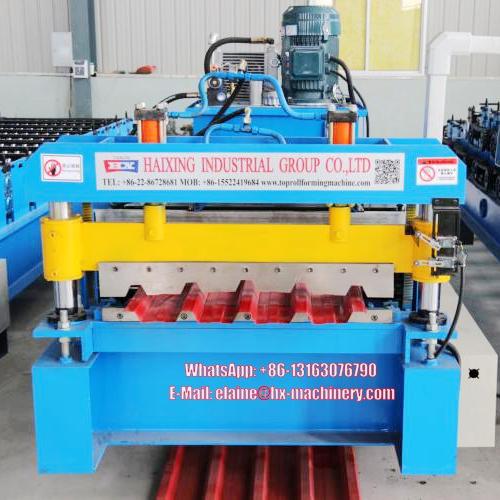

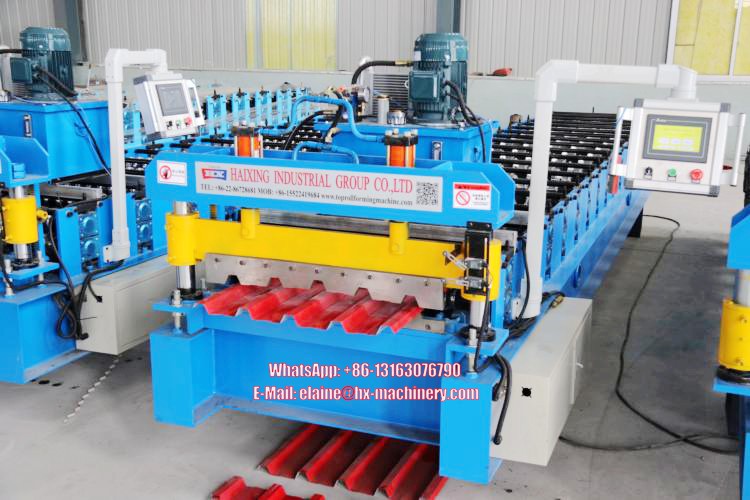

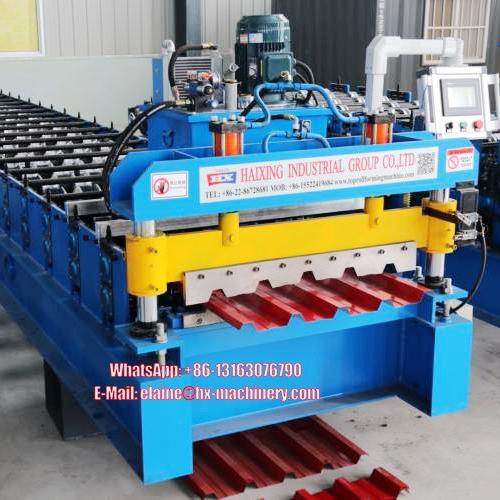

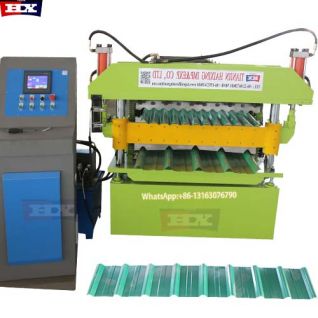

Photo de la machine profileuse de tole TN40 pour Algérie pour référence
Machine compensation

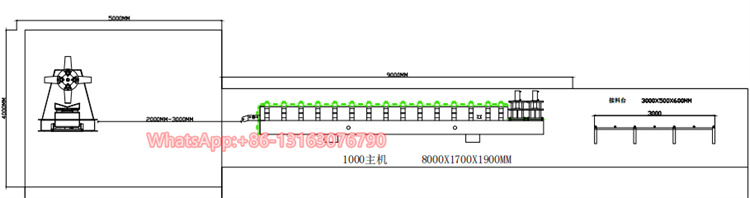

It include decoiler machine 7Ton, roll forming machine, PLC control systerm, Touch screen, Hydraulic cut, electric control system, output table 3meters
Packaging of Ibr trapezoidal roof sheet roll forming machine
Load in 40ft container, nude packing and pack them with waterproof plastic to safeguard the equipment during transportation and storage.
After sales services
24-month limited warranty
Components and parts are free during the warranty period.
